DMT561HL

DMT561HL

PRODUCT TYPE: GEARBOX

MENUFECTURER: D-I INDUSTRIAL

(4.5 reviews)





Reduction Ratio 3.03, 3.28, 3.56, 4.07, 4.48, 4.95
Max. Input torque [kg.m] 550, 550, 550, 550, 526,
Max. Input (rpm) 2300
Power/rpm (Hp) 0.624, 0.624, 0.624, 0.546, 0.444
Dry weight (kg) 660
Engine power (Hp, 1800 rpm) 1124, 1124, 1124, 984, 799
Engine power (Hp, 2100 rpm) 1311, 1311, 1311, 1148, 934
Engine power (Hp, 2300 rpm) 1436, 1436, 1436, 1257, 1022

Reverse reduction marine transmission with hydraulically actuated multi-disc clutches .

Suitable for high performance applications in workboat, fishingboat, commecial, Tugboat, Inland workboat etc .
Robust design also withstands continuous duty in workboat applications .
Fully works tested, reliable and simple to install .
Design, manufacture and quality control standards comply with ISO 9001 .

Standard Equipment

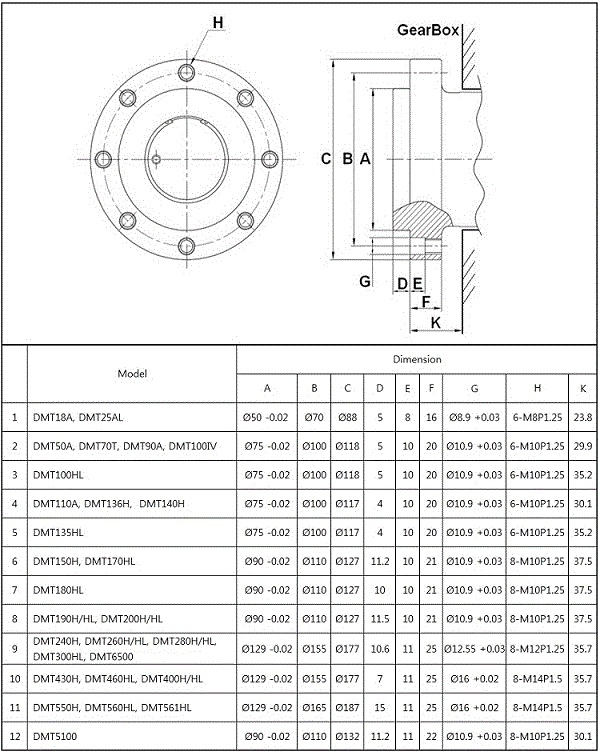

SAE #0, and SAE #1 bell housings .

CENTA Flexible Coupling.
Oil cooler Assembly
Mounting brackets(Plate Type for welding) .

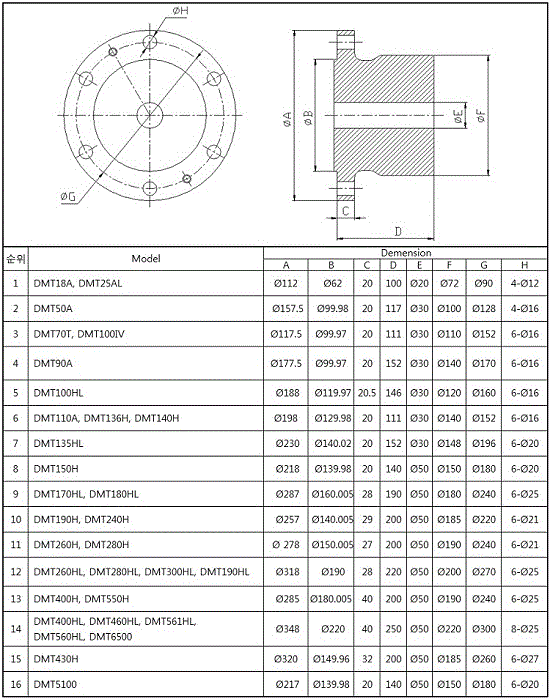

Propeller shaft flange .

Control cable bracket and Clamp parts for connection of the push-pull cable

Option

Trolling valve for slow speed navigation.

Electric shifting valve
