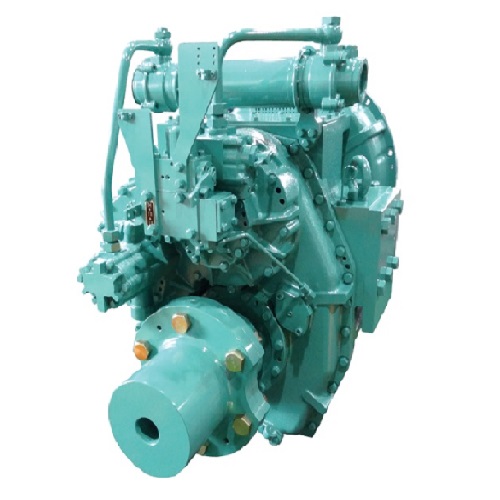

DMT430H

DMT430H

PRODUCT TYPE: GEARBOX

MENUFECTURER: D-I INDUSTRIAL

(4.5 reviews)

Reduction Ratio 2.05, 2.43, 2.93, 3.23, 3.40
Max. Input torque [kg.m] 453, 453, 453, 430, 408
Max. Input (rpm) 2300
Power/rpm (Hp) 0.623, 0.623, 0.623, 0.592, 0.562
Dry weight (kg) 694
Engine power (Hp, 1800 rpm) 1123, 1124, 1124, 1066, 1011
Engine power (Hp, 2100 rpm) 1310, 1310, 1310, 1243, 1180
Engine power (Hp, 2300 rpm) 1435, 1435, 1435, 1363, 1293

Vertical offset, direct mount marine transmission.

Available for Pleasure, Light, Medium and Continuous Duty applications.
Case hardened and precisely ground gear teeth for long life and smooth running .
Output shaft thrust bearing designed to take maximum propeller thrust astern and ahead .
B/W connection integrated with casing .
Smooth and reliable hydraulic shifting with control lever for attachment of push-pull cable .
Suitable for twin engine installations (same torque capacity in ahead or astern mode. Reduction Ratios in ahead or astern are very close.) .
Replaceable oil filter cartridge

Standard Equipment

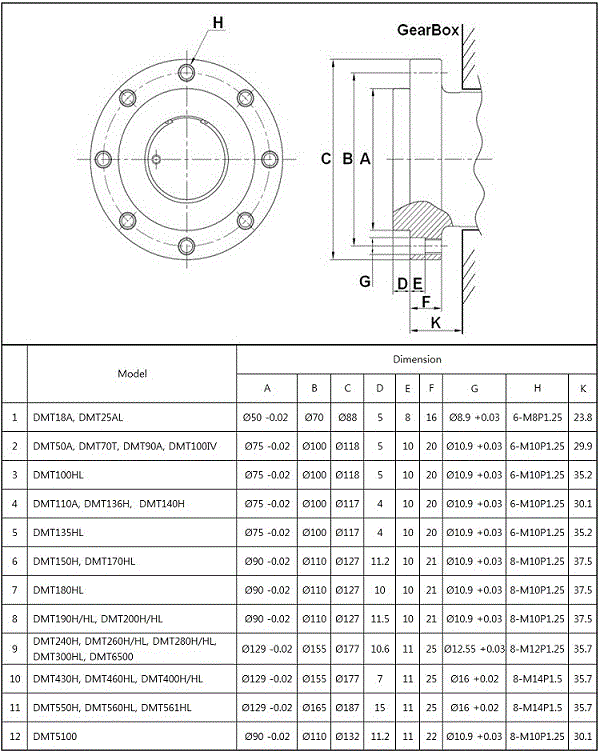

SAE #0, and SAE #1 bell housings .

CENTA Flexible Coupling.

Oil cooler Assembly

Mounting brackets(Plate Type for welding) .

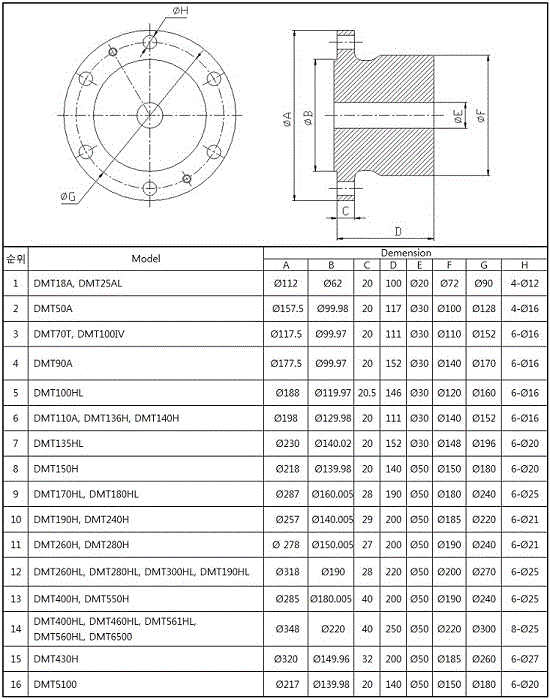

Propeller shaft flange .

Control cable bracket and Clamp parts for connection of the push-pull cable .

Option

Trolling valve for slow speed navigation.

Electric shifting valve.
