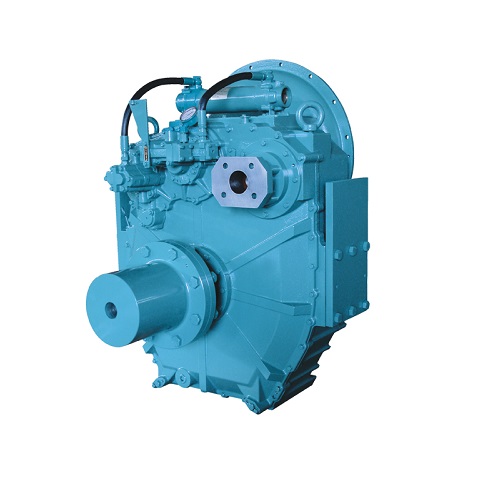

DMTP6500

DMTP6500

PRODUCT TYPE: GEARBOX

MENUFECTURER: D-I INDUSTRIAL

(4.5 reviews)



Reduction Ratio 5.11, 5.62, 5.91, 6.57, 6.95
Max. Input torque [kg.m] 258, 298, 298, 298, 298
Max. Input [rpm] 2800, 2500, 2500, 2500, 2500
Power/rpm (Hp)  0,356, 0,356, 0,356, 0,328, 0,328
Dry weight (kg) 900
Engine power (Hp, 1800 rpm) 640, 640, 640, 590, 590
Engine power (Hp, 2100 rpm) 747, 747, 747, 689, 689
Engine power (Hp, 2300 rpm) 818, 818, 818, 755, 755

Reverse reduction type with hydraulically actuated multi disc clutches.

Cast-iron case, vertical off set and direct mounting.

Same torque capacity & ratio in both ahead and astern

Easy maintenance & robust design.

Precisely ground gear teeth for long life and smooth operating.

"Go home" function in emergency.

Various applications : for pleasure, light, medium and contiuous duty.

Strictly quality controled by complying with ISO 9001.?

Standard Equipment

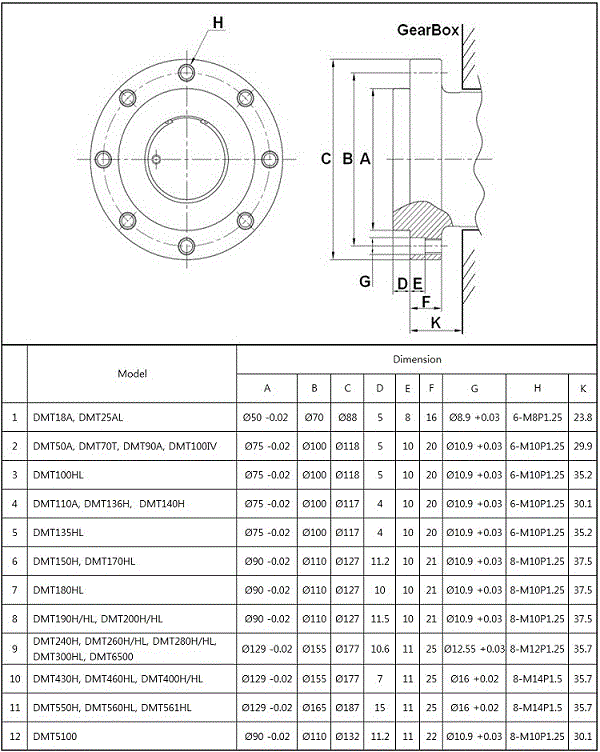

SAE #0, and SAE #1 bell housings .
Engine-matched Rubber Block type coupling .
Oil cooler Assembly
Mounting brackets(Plate Type for welding) .
Propeller shaft flange .
Control cable bracket and Clamp parts for connection of the push-pull cable .

Option

?Centa Flexible Coupling.

Trolling valve for slow speed navigation.

Electric shifting valve.
