DMT135HL

DMT135HL

PRODUCT TYPE: GEARBOX

MENUFECTURER: D-I INDUSTRIAL

(4.5 reviews)



Reduction Ratio 4.07, 4.5, 4,95
Max. Input torque [kg.m] 125
Max. Input (rpm) 2800
power/rpm 0,128
Dry weight (kg) 309
Engine power (Hp, 1800 rpm) 361
Engine power (Hp, 2100 rpm) 396
Engine power (Hp, 2400 rpm) 293
  • Reverse reduction type with hydraulically actuated multi disc clutches.
  • Cast-iron case, vertical off set and direct mounting.
  • Same torque capacity & ratio in both ahead and astern
  • Easy maintenance & robust design.
  • Precisely ground gear teeth for long life and smooth operating.
  • "Go home" function in emergency.
  • Various applications : for pleasure, light, medium and contiuous duty.
  • Strictly quality controled by complying with ISO 9001.

Standart equipment

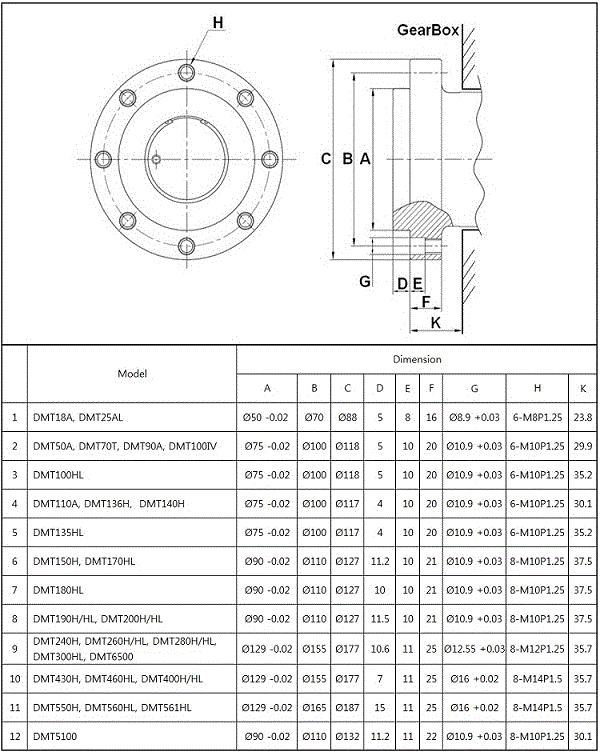

  •  SAE #3, 2, and SAE #1 bell housings .
  • Engine-matched Rubber Block type coupling .
  • Oil cooler Assembly
  • Mounting brackets(Plate Type for welding) .

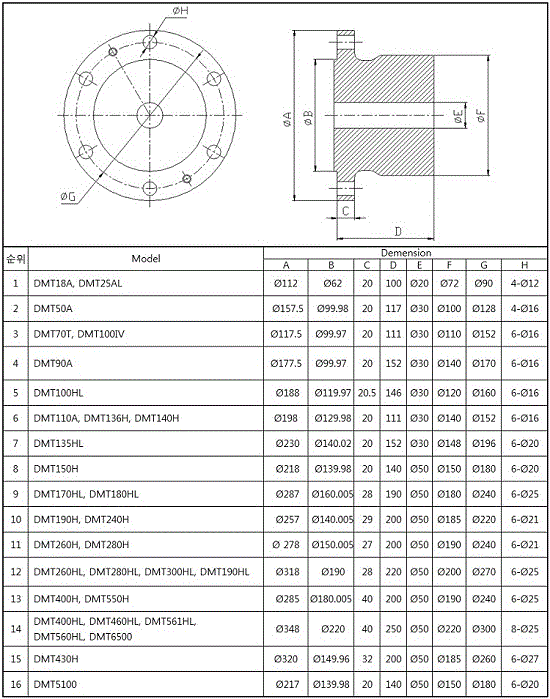

  • Propeller shaft flange .
  • Control cable bracket and Clamp parts for connection of the push-pull cable .

Option

  • Dual stage input coupling (noice and vibration reduction)
  • Hi flexible input coupling
  • Trolling valve for slow speed navigation
  • Electric shifting valve
