| Reduction Ratio | 3.02, 3.28, 3.56, 4.07, 4.48, 4.95 |
| Max. Input torque [kg.m] | 625, 625, 625, 625, 591, 541 |
| Max. Input (rpm) | 2200 |
| Power/rpm (Hp) | 0.86, 0.86, 0.86, 0.86, 0.814, 0.745 |
| Dry weight (kg) | 1209 |
| Engine power (Hp, 1800 rpm) | 1549, 1549, 1549, 1549, 1465, 1342 |
| Engine power (Hp, 2100 rpm) | 1807, 1807, 1807, 1807, 1710, 1566 |
Reverse reduction marine transmission with hydraulically actuated multi-disc clutches .
Suitable for high performance applications in workboat, fishingboat, commecial, Tugboat, Inland workboat etc .
Robust design also withstands continuous duty in workboat applications .
Fully works tested, reliable and simple to install .
Design, manufacture and quality control standards comply with ISO 9001 .
Standard Equipment
SAE #0
CENTA Flexible Coupling.
Oil cooler Assembly
Mounting brackets(Plate Type for welding) .

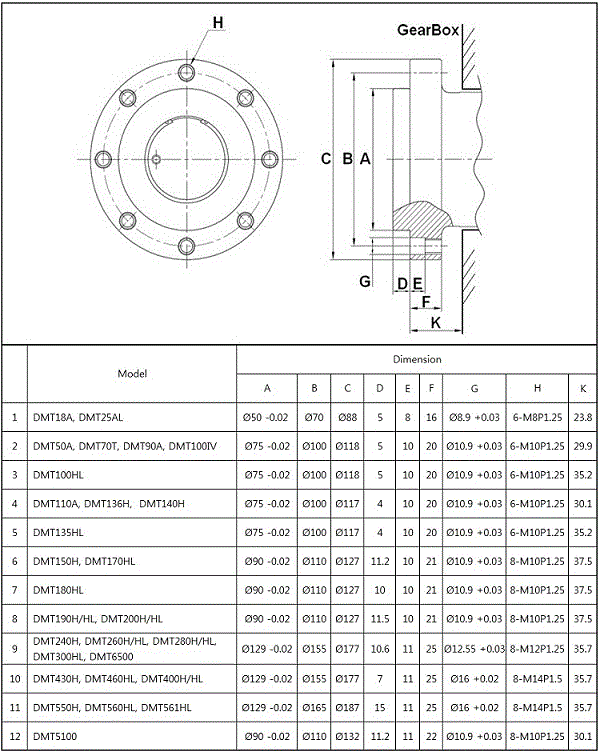

Propeller shaft flange .
Control cable bracket and Clamp parts for connection of the push-pull cable .
Option
Trolling valve for slow speed navigation.
Electric shifting valve.
