|Reduction Ratio||2,06, 2,5, 2,92, 3,26|
|Max. Input torque [kg.m]||298|
|Max. Input (rpm)||2500|
|Dry weight (kg)||490|
|Engine power (Hp, 1800 rpm)||738|
|Engine power (Hp, 2100 rpm)||862|
|Engine power (Hp, 2300 rpm)||944|
Reverse reduction type with hydraulically actuated multi disc clutches.
Cast-iron case, vertical off set and direct mounting.
Same torque capacity & ratio in both ahead and astern
Easy maintenance & robust design.
Precisely ground gear teeth for long life and smooth operating.
"Go home" function in emergency.
Various applications : for pleasure, light, medium and contiuous duty.
Strictly quality controled by complying with ISO 9001.
SAE #1, and SAE #0 bell housings .
Engine-matched Rubber Block type coupling .
Oil cooler Assembly
Mounting brackets(Plate Type for welding) .

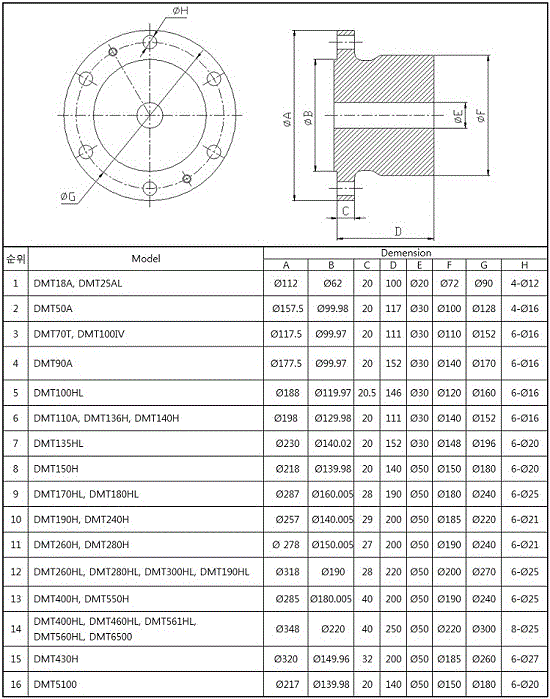

Propeller shaft flange .
Control cable bracket and Clamp parts for connection of the push-pull cable .
Centa Flexible Coupling.
Trolling valve for slow speed navigation.
Electric shifting valve.
