|Reduction Ratio||1,77, 2,09, 2,42, 2,82, 3,19, 3,81|
|Max. Input torque [kg.m]||110|
|Max. Input (rpm)||2800|
|Dry weight (kg)||212|
|Engine power (Hp, 1800 rpm)||272|
|Engine power (Hp, 2100 rpm)||317|
|Engine power (Hp, 2400 rpm)||348|

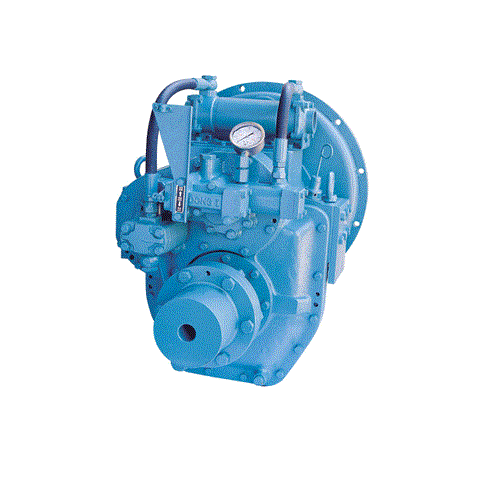

- Reverse reduction type with hydraulically actuated multi disc clutches.
- Cast-iron case, vertical off set and direct mounting.
- Same torque capacity & ratio in both ahead and astern
- Easy maintenance & robust design.
- Precisely ground gear teeth for long life and smooth operating.
- "Go home" function in emergency.
- Various applications : for pleasure, light, medium and contiuous duty.
- Strictly quality controled by complying with ISO 9001.
- SAE #2, and SAE #1 bell housings .
- Engine-matched Rubber Block type coupling .
- Oil cooler Assembly
- Mounting brackets(Plate Type for welding) .

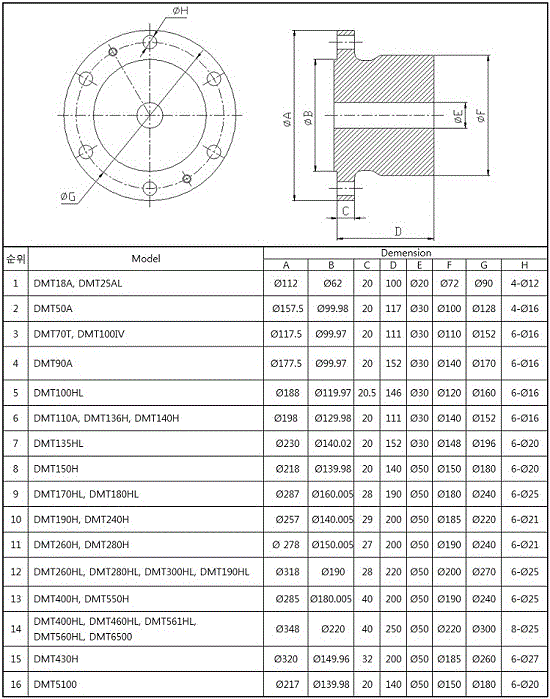

- Propeller shaft flange .
- Control cable bracket and Clamp parts for connection of the push-pull cable.
- Trolling valve for slow speed navigation
- Electric shifting valve
